Color Fastness Tester

2019 New AATCC American Standard Shrinkage Dryer - 3LWTW4815FW

product manual

Whirlpool 3LWTW4815FW, Whirlpool 3LWTW4815FW, is a brand of standard shrinkage testing (special) dryer recognized by the American Association of Textile Chemists and Dyeing Specialists (AATCC) Testing Textiles such as Knitting

  • description

  • compliant

  • Parameters

  • principle

  • Standard

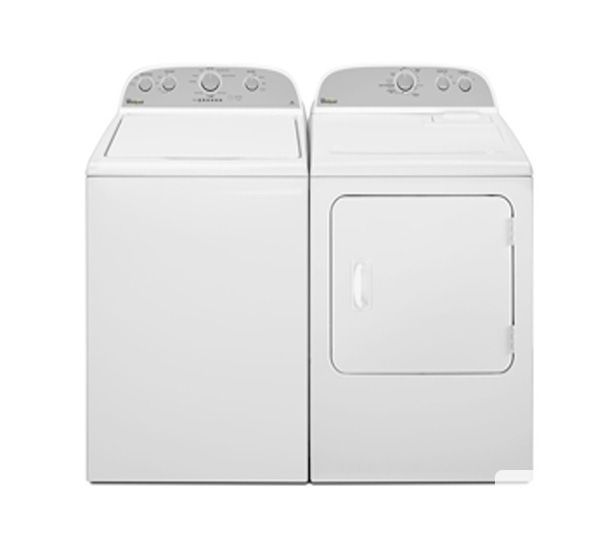

Whirlpool 3LWTW4815FW, Whirlpool 3LWTW4815FW, is a brand of standard shrinkage testing (special) dryer recognized by the American Association of Textile Chemists and Dyeing Specialists (AATCC). Testing textiles such as knitted fabrics, woven fabrics and clothing, after one or more washes, shrinkage or elongation can be obtained. Appearance rating after washing and nursing labels for clothing and clothing can also be made.

Standard dryers designated by AATCC in the United States are used in conjunction with AATCC standard washing machines.

It replaces Whirlpool 3LWED4900YW2 and other old models.


American standard shrinkage dryer application test standards are: AATCC 88B, AATCC 88C, AATCC 124, AATCC 130, AATCC 135, AATCC 142, AATCC 143, AATCC C15.

1. Drying Form: Electric Air Blowing

2. Load Form: Front-end Loading

3. Capacity: 15kg/33 pounds

4. Temperature Settings: Low Temperature-Standard-High Temperature

5. Drying procedures: 14

6. Power supply: 220-240v/50hz

7. Maximum power: 4600W

8. Size: 110 *76 *76cm (H *W *D)

9. Weight: 55kg


1. Rotation form: drum type

2. Dry clothes: 15kg/33 pounds

3. Drum volume: 7.4 cubic feet

4. 14 professional drying procedures (high temperature, standard, low temperature drying, energy-saving dry clothes and denim clothing)

5. Drying time: 10-70 minutes (including cold-air drying, cold-air wrinkle-proof, moderate and high drying)

6. 3 Dry Clothes Temperature Selection (High, Medium and Low)

7. Auto-rotating wrinkle-proof function

8. Complete the loud reminder

9. Precision Induction Drying System

10. Mute Vibration Absorption System

11. Extra Large Door


American Standard Shrinkage Dryer Optional Configuration:

1. American 1993 Laundry Powder Containing Fluorescent Laundry Powder, Tide Original Laundry Powder

2. American heavy-duty washcloth (4 pounds and 16 yuan per bag)

3. Color pens without legs after washing (yellow, black and red)

4. Percentage Scale for American Shrinkage

5. Standard print ruler (10 inches or 18 inches)
